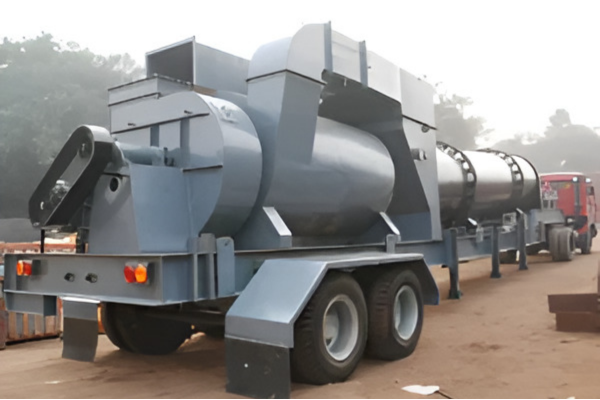

Mobile Drum Mix Plant for Municipal, Industrial, and Infrastructure Projects
The Mobile Drum Mix Plant is designed to provide efficient and high-quality asphalt production directly at construction sites. Its compact and mobile design allows quick setup and relocation, making it ideal for highways, municipal roads, and industrial projects. The plant ensures uniform mixing of aggregates and bitumen, delivering consistent asphalt quality and smooth road surfaces while reducing material wastage and manual labor.
Equipped with insulated bitumen storage, an advanced drying cum mixing unit, and AC variable speed conveyors, the Mobile Drum Mix Plant offers reliable, continuous operation even in challenging site conditions. Its robust construction and user-friendly controls make it perfect for contractors, EPC companies, and municipal authorities who require cost-effective, on-site asphalt production without compromising performance or productivity.
Applications
- On-site asphalt production for highways
- Municipal and urban road surfacing projects
- Industrial roads and townships
- EPC and contractor road projects
- Road resurfacing and maintenance works
- Fast asphalt mixing for infrastructure works
Key Features
- Compact and mobile design for on-site use
- Uniform asphalt mixing for smooth roads
- Efficient drying cum mixing unit
- Insulated bitumen storage with temperature control
- AC variable speed conveyors for accurate feeding
- Reliable operation, low maintenance
Specification
| Drying Cum Mixing Unit | Shell thickness 10 mm; Thermo drum 1020 mm diameter × 5000 mm length; Cradle-type chain drive |
| Drier Drum & Exhaust Motors | Drier drum motor 10 HP × 1500 RPM; Exhaust motor 10 HP × 1400 RPM |
| Dust Collector | Multi-cone primary dust collector – 10 cones; Dust discharged via motorized worm screw; Inclination 5° |
| Burner | Pressure jet electronically fired oil burner; Blower 3 HP × 2800 RPM; Pumping station motor 2 HP |
| Cold Aggregate Feeder | 2 bins; Total storage 20 ton (10 ton each); AC variable frequency drive conveyors |
| Gathering Conveyor | Belt 600 mm × 10 m; Drive motor 5 HP × 1400 RPM; SMSR gear box; Bin vibrator motor 1 HP |
| Bitumen Storage Tank | 10 ton insulated; Direct heating; Variable speed motor; U-type shape; Automatic thermostatic burner |
| Bitumen Pump | 3 HP × 1400 RPM; Heating coil diameter 200 mm |
| Load-Out Conveyor | Belt 500 mm × 15.9 m; Gob hopper 800 kg; Hydraulic power pack 2 HP |
| Fuel Tank | Capacity 1,000 L; Compact and mobile design for on-site asphalt production |
